Historic restoration · Exterior carpentry

Cedar Park Victorian porch

Rebuilding a wraparound porch, then restoring its posts, railings, and painted ornament.

Restored Victorian wraparound porch with painted posts, railings, and gingerbread trim

This Victorian home in Cedar Park has a wraparound porch with a circular projection at the corner. Restoring it meant working from the supporting masonry and framing outward to the decking, joinery, and painted details.

The work unfolded over two seasons. Each phase required lifting and temporarily supporting the porch roof while the construction beneath it was repaired and reinstalled.

Setting: Cedar Park, Philadelphia
Scope: Porch framing and decking; post and railing repairs; fascia, ceiling, and decorative paintwork
Shown here: Two restoration phases, 2024–2025

Rebuilding the deck

Removing the old decking exposed rotten and damaged framing. Traditional framing repairs, reinforcement at ends and corners, and intermediate bridging restored the deck structure. Reset upper courses at the curved masonry piers established a sound, level bearing for the repaired framing.

The circular corner created an unusual meeting of structure and surface. Meranti tongue-and-groove decking was laid across the porch, with purpose-made scribing tools used to transfer the curved perimeter onto the projecting boards. Custom glued-up pieces resolved the change in board direction at the large miter bisecting the circular corner.

The decking was sanded and sealed. New fascia was scribed around the existing masonry piers, finished with quarter-round beneath the deck edge, and painted to match the porch’s green trim.

Structural lag screws tied the repaired framing together, with countersunk angled fixings where access was restricted. Added bridging shortened unsupported lengths and strengthened the awkward transitions at the curved corner. The initial framing and decking phase finished ahead of schedule and under budget.

Restoring the woodwork

The following spring, posts, railing assemblies, and gingerbread ornament were removed for stripping, repair, and repainting. A short section of top, bottom, and cap rail was fabricated to replace material that could not be retained, with the profiles worked to match the existing detail.

Rotten bases were cut from the retained turned posts and replaced with cedar using hand-cut bridle joints reinforced with one-inch cedar dowels. The deep joints were cut and fitted by hand. A collaborating turner supplied one new cedar post and replacement gingerbread and balustrade spindles.

The repaired woodwork and porch ceiling were primed and repainted, with the original decorative color details worked back into the surface. Temporary roof support allowed the restored assemblies to be reinstalled.

Project record

Select an image to view it larger.

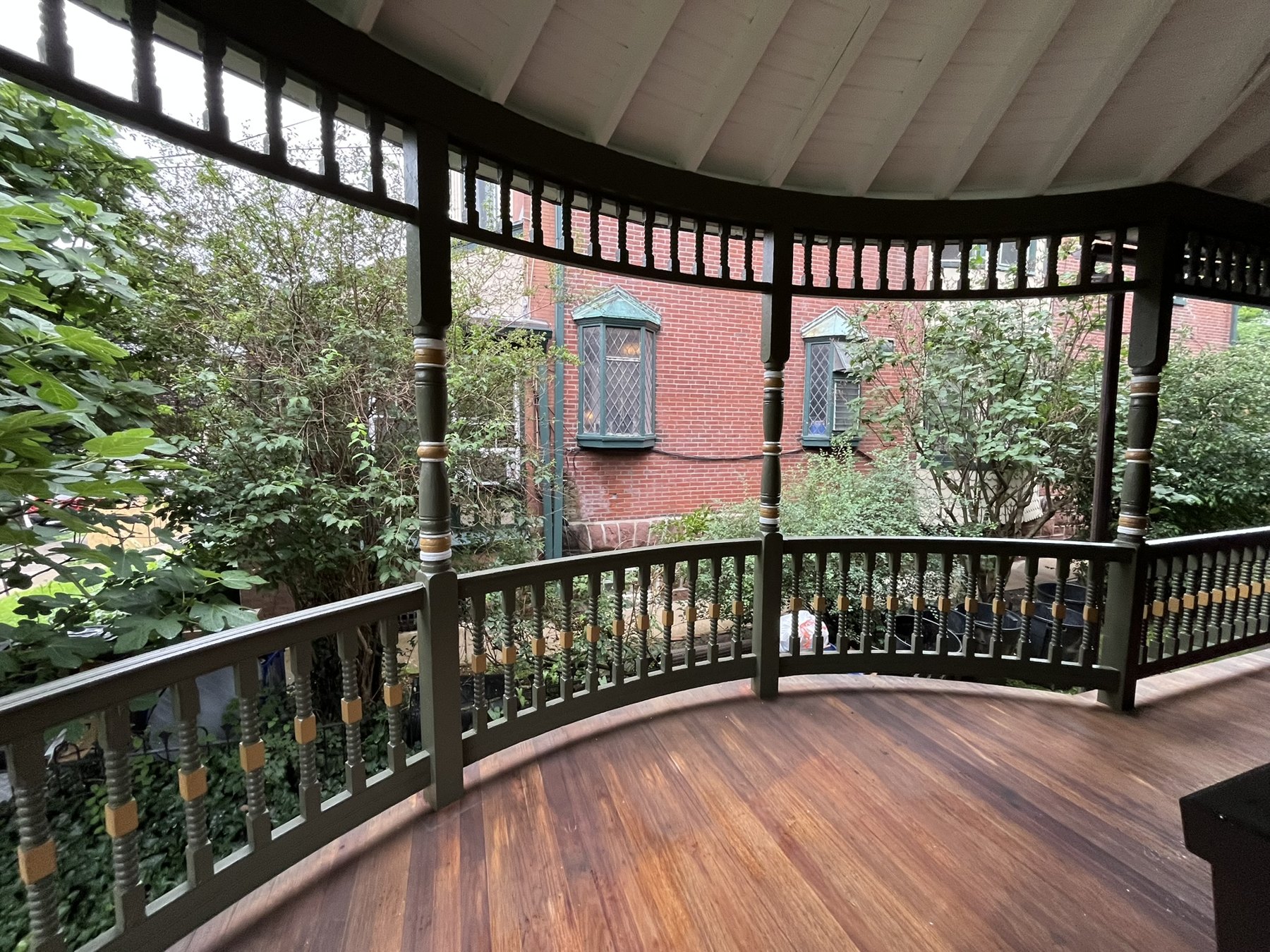

Curved porch corner with restored railings, painted ceiling, and meranti decking — The circular corner after restoration, with the decking, railings, and overhead ornament brought together.

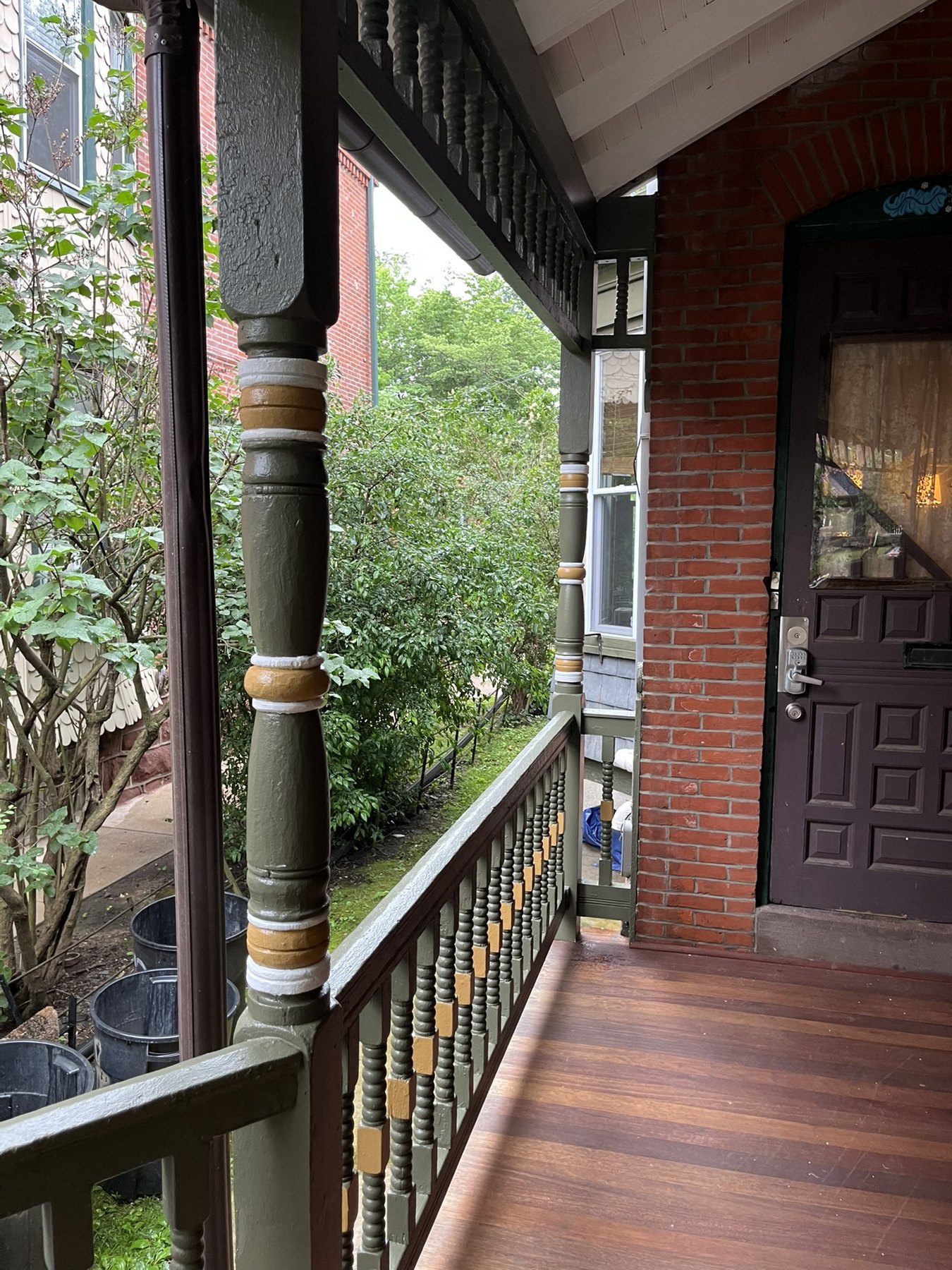

Restored turned porch post with contrasting painted bands beside the entry — Restored color details on a turned post, with the railing and gingerbread reinstalled.

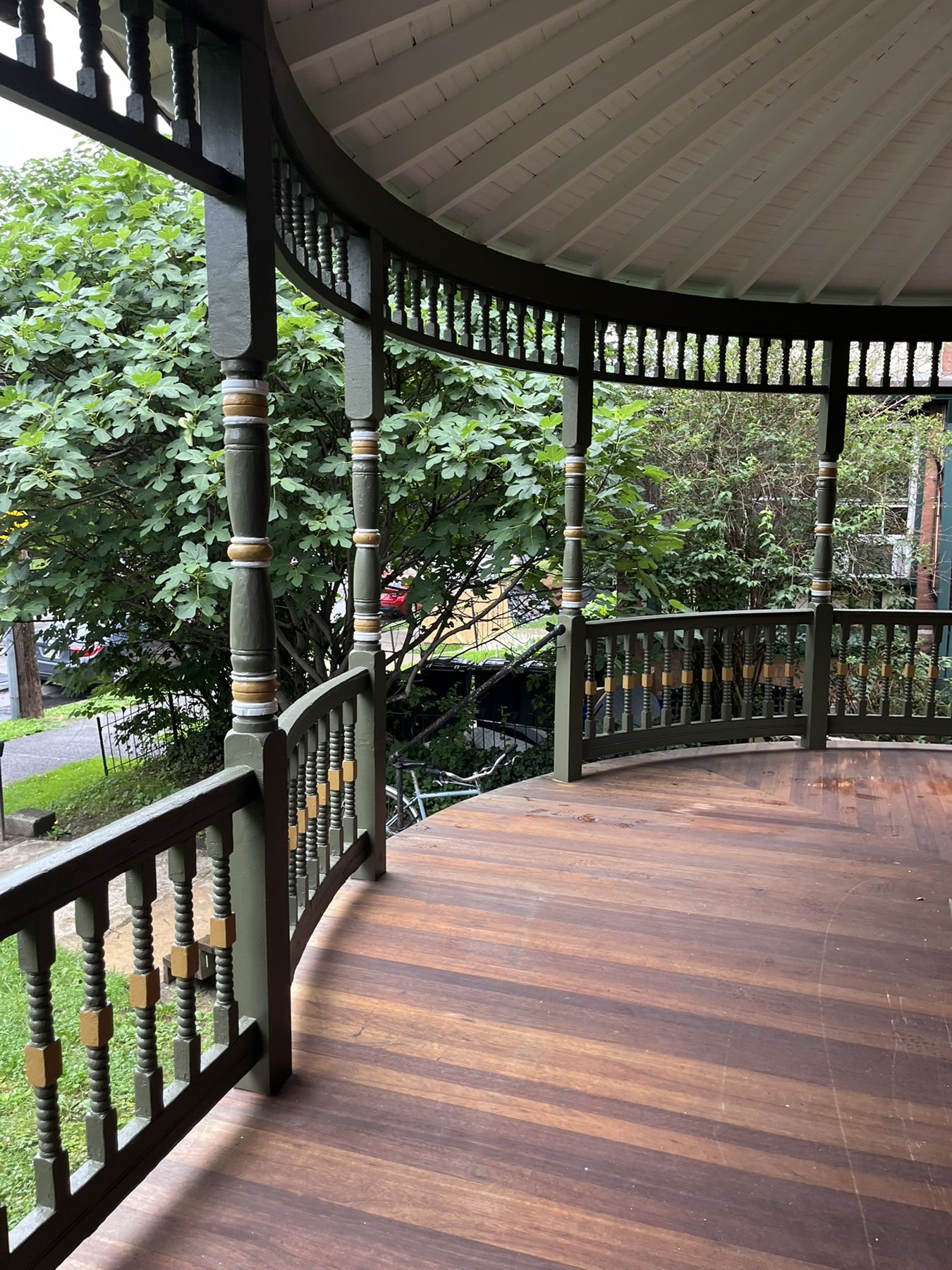

Finished meranti deck beneath restored green woodwork and a painted porch ceiling — The completed porch interior, looking along the meranti decking toward the curved corner.

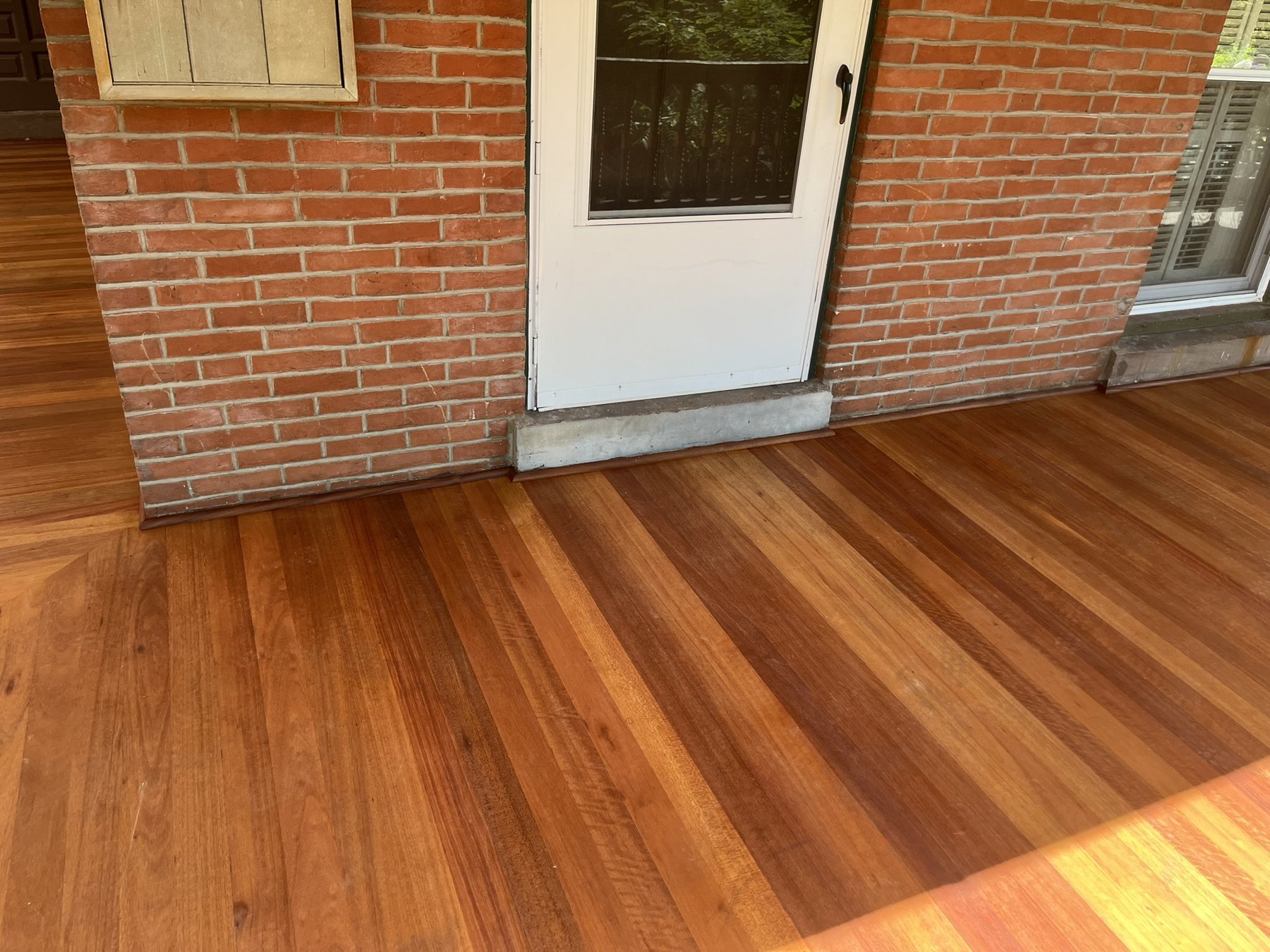

Renewed meranti porch decking alongside the brick house wall — Meranti tongue-and-groove decking, sanded and sealed.

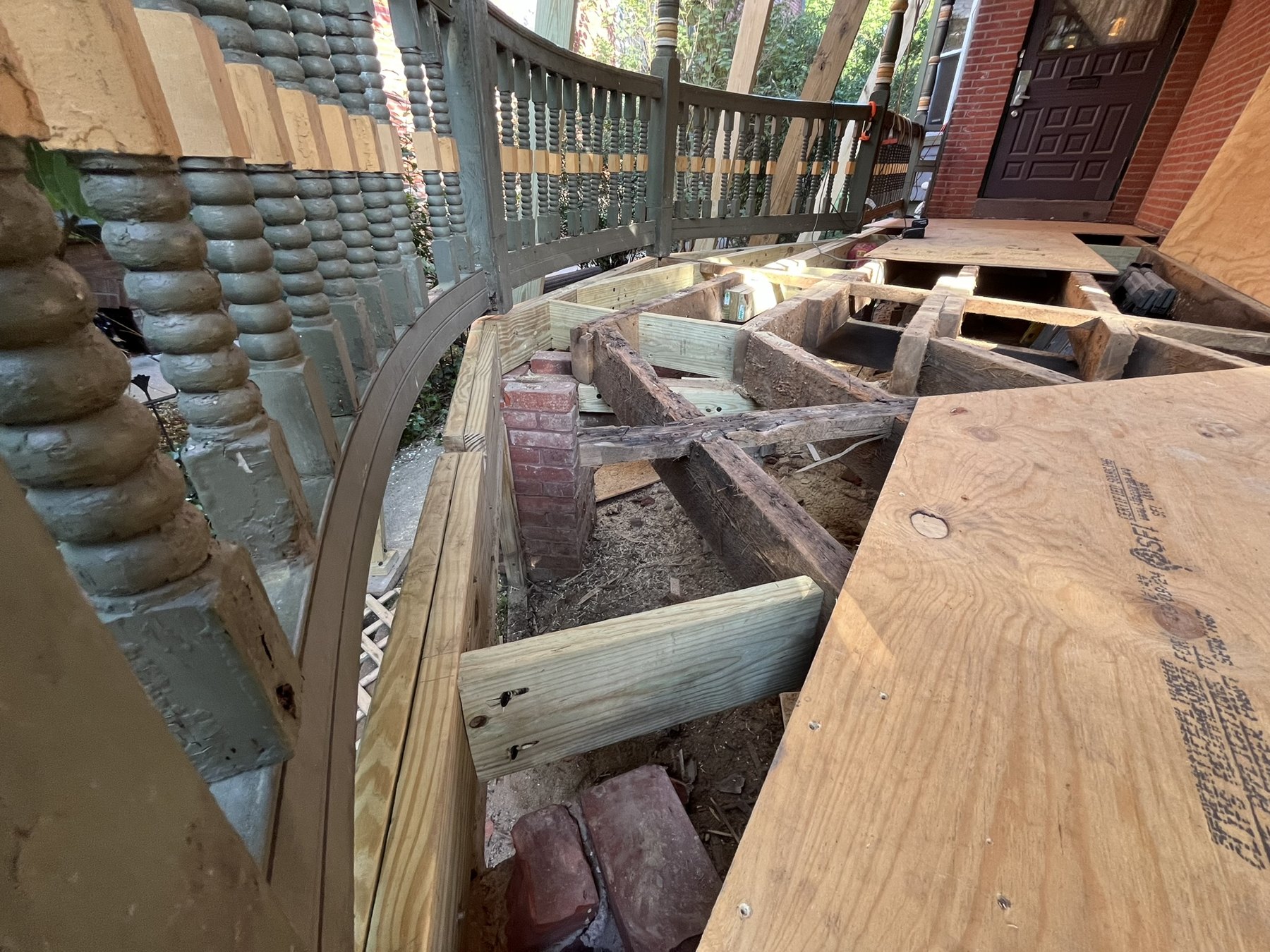

Exposed porch framing beside retained turned railing — The deck opened up for framing and support repairs.

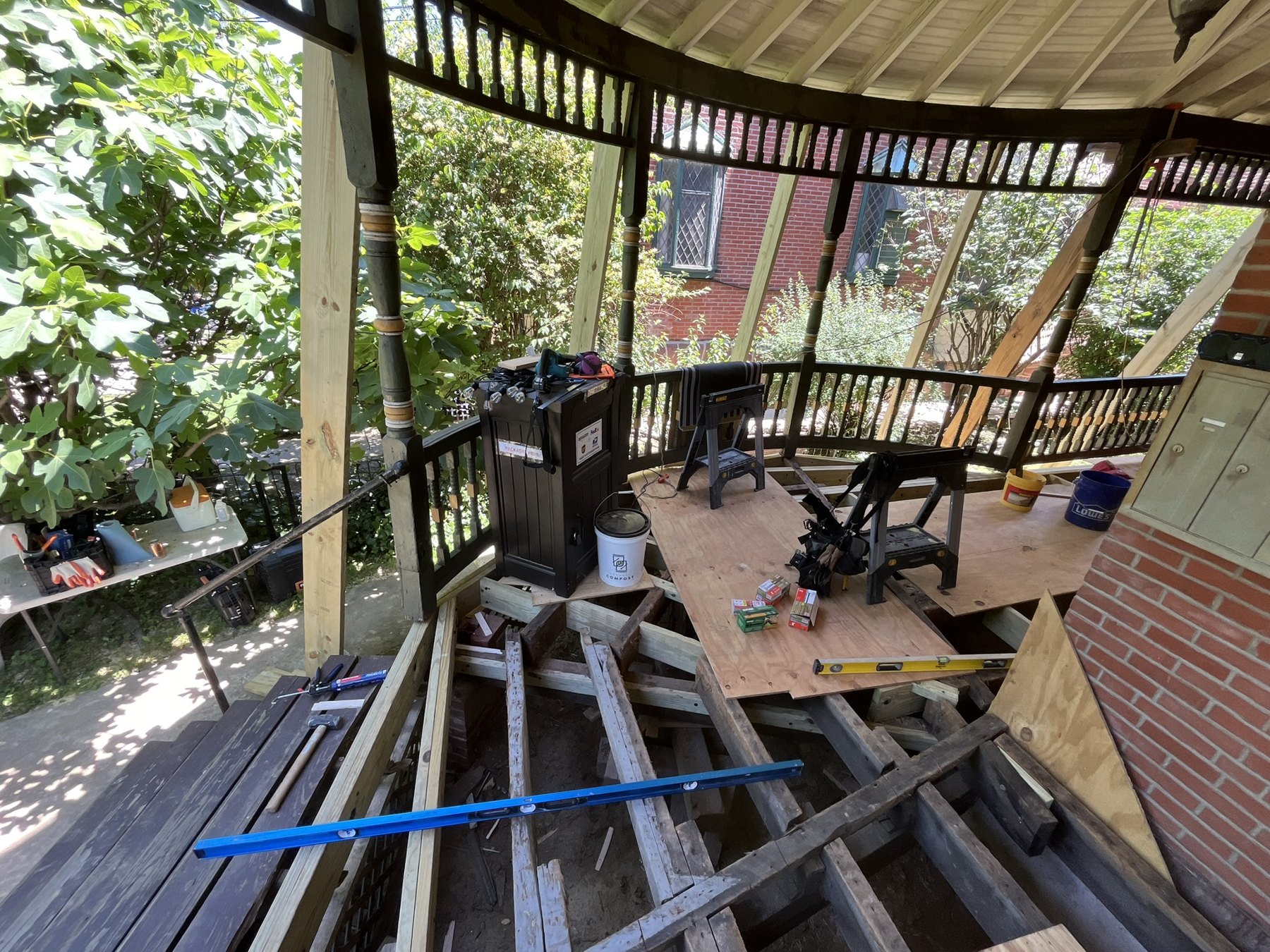

Exposed framing following the circular corner of the wraparound porch — Framing at the circular projection, with new reinforcement fitted among the retained members.

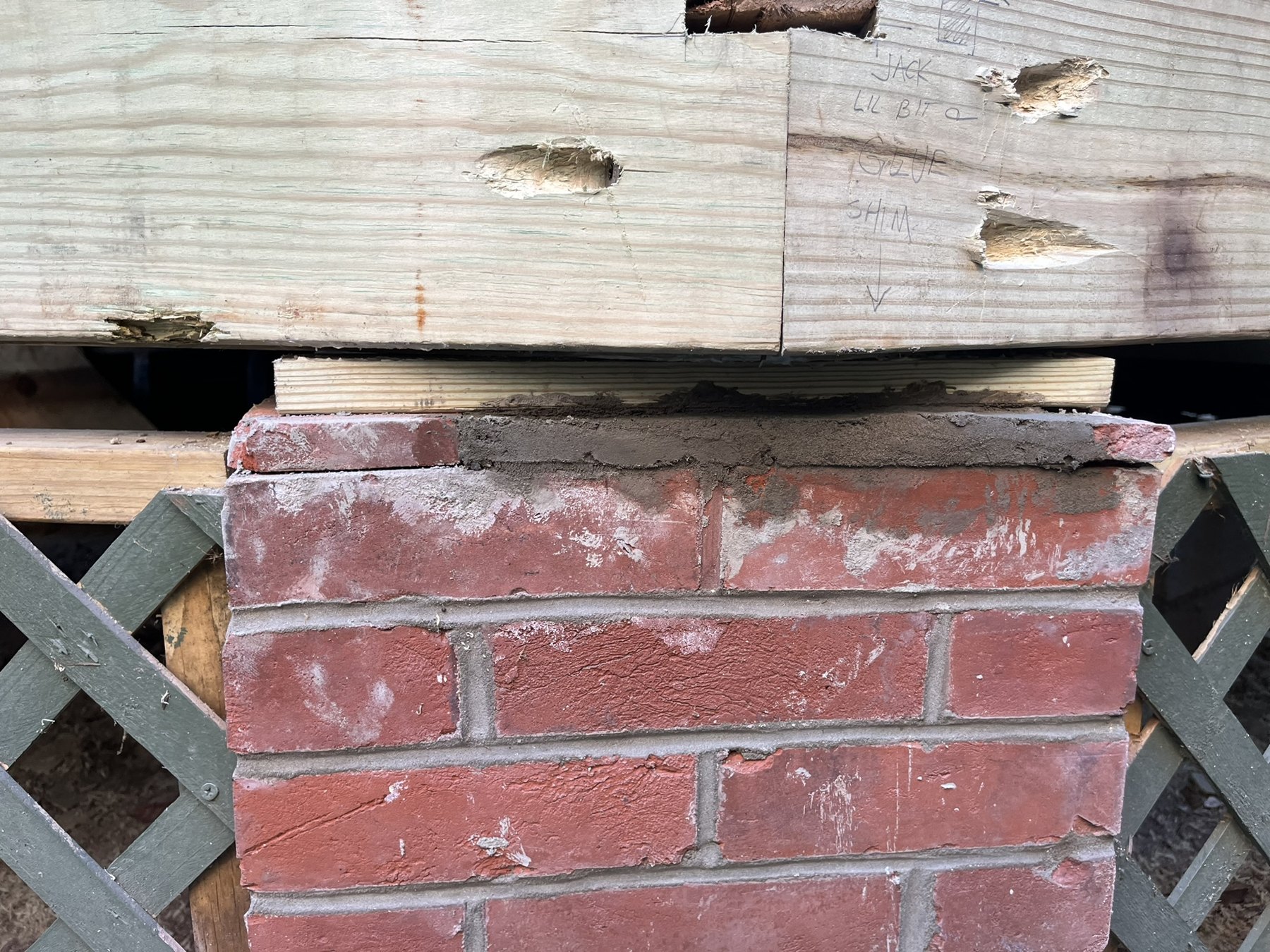

Timber porch framing bearing on a repaired brick pier — The meeting of repaired framing and masonry bearing.

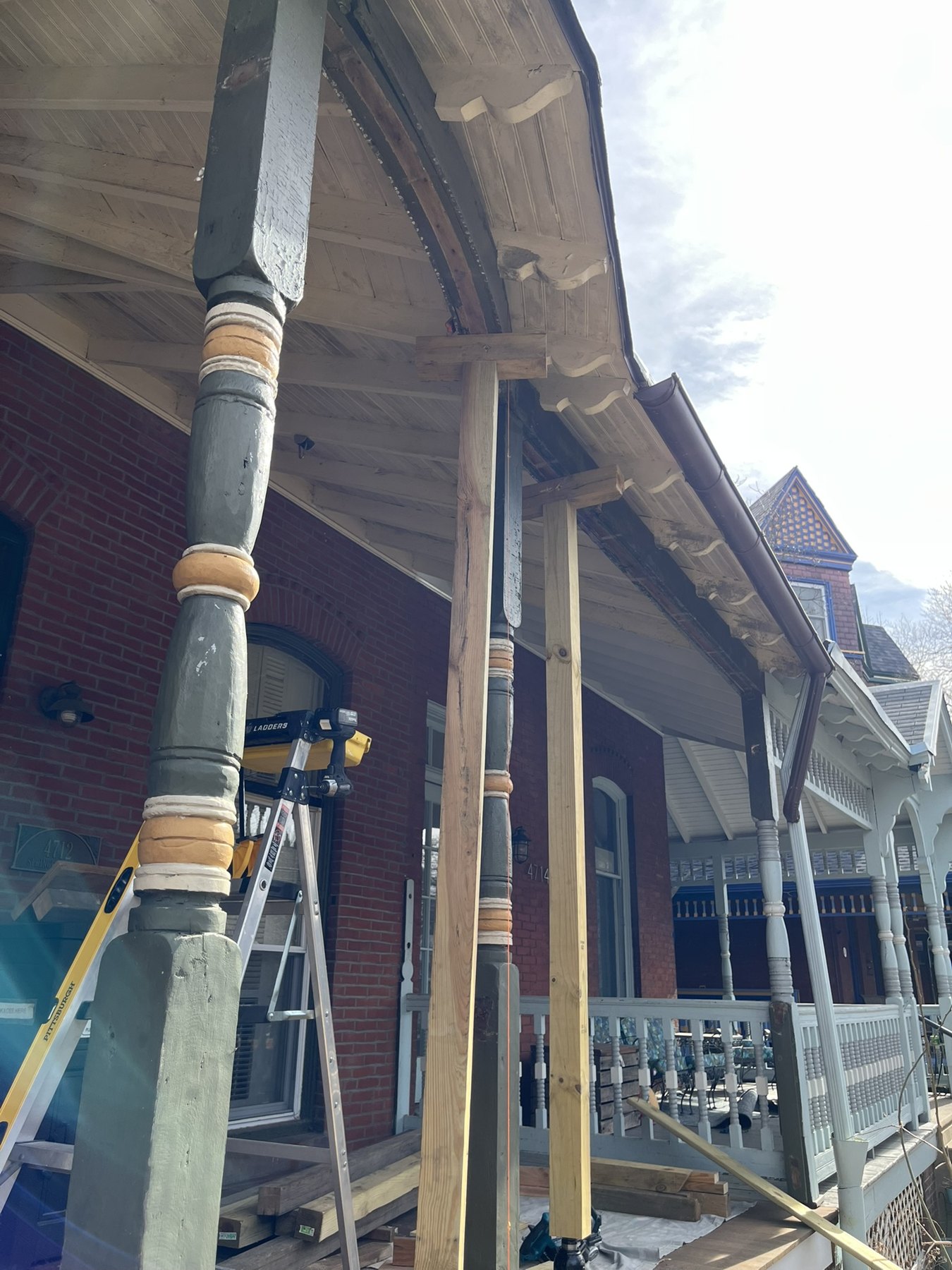

Temporary timber supports beneath the porch roof during restoration — Temporary roof support while the original post assemblies were removed for repair.

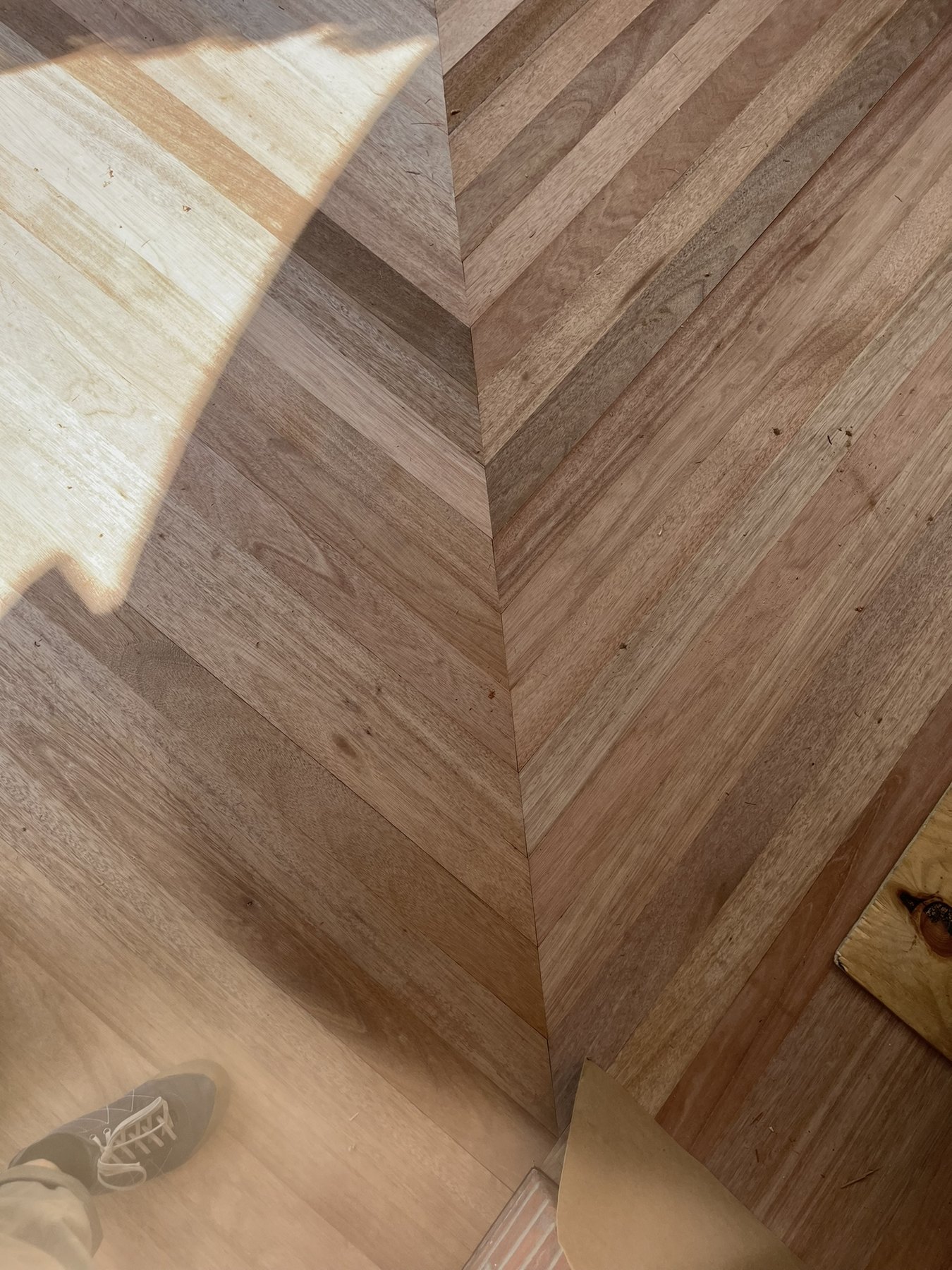

Meranti decking changing direction along a miter at the circular porch corner — The change in board direction at the circular corner required custom fitted pieces.

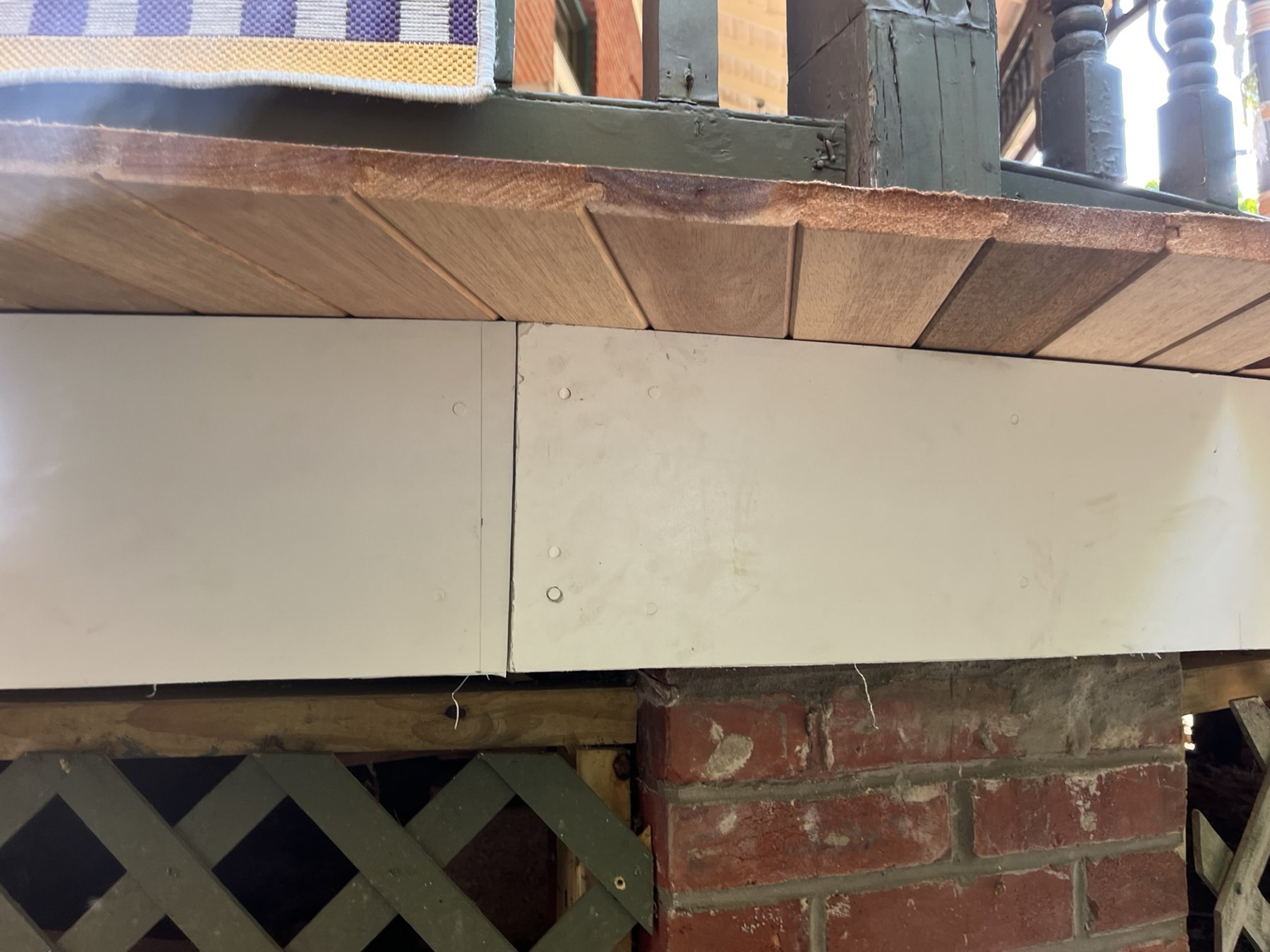

New porch fascia fitted over an existing brick pier — New fascia fitted around the existing masonry, before finish painting.

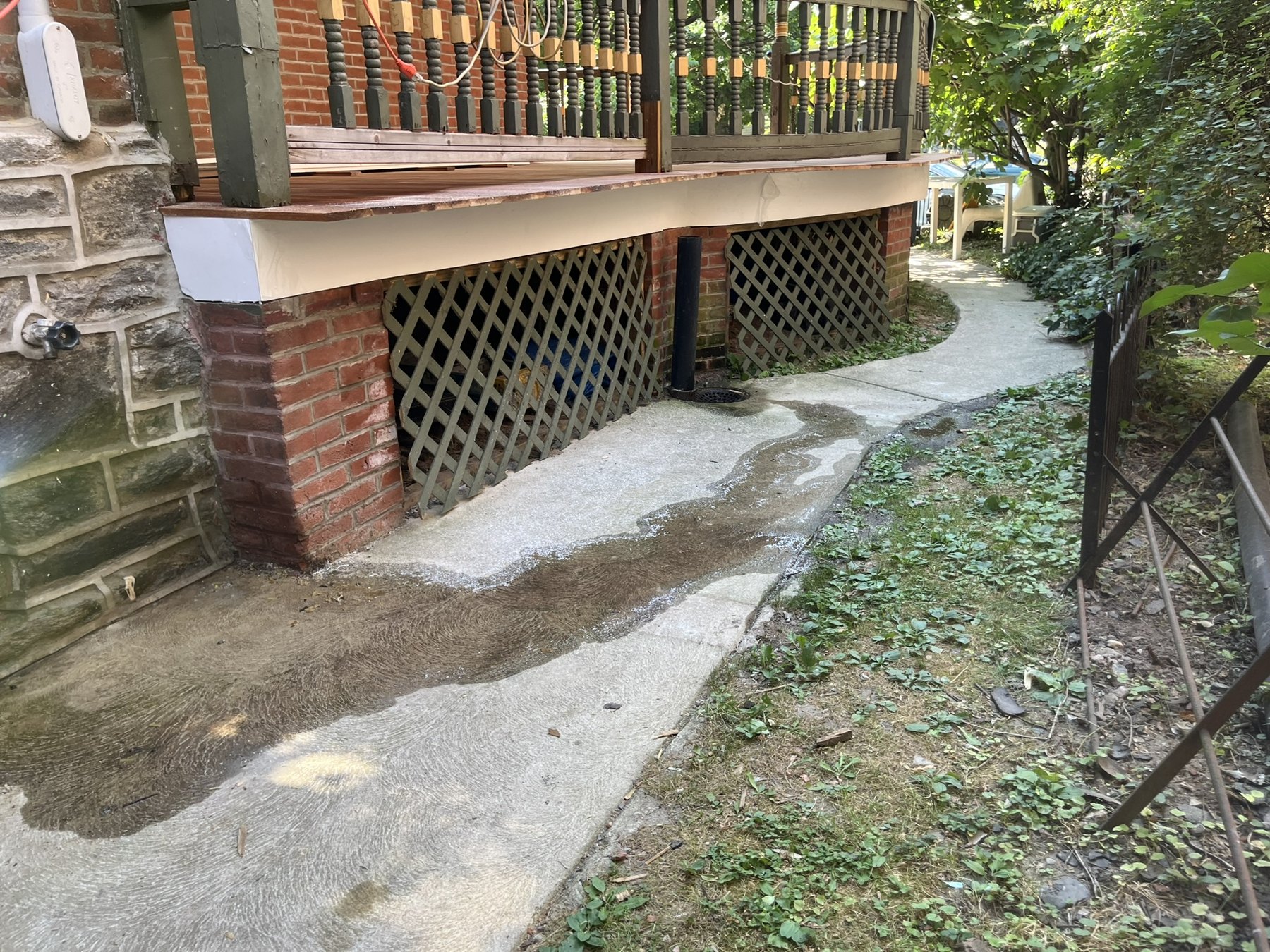

Victorian porch with wood decking, railing, brick piers and lattice — The wraparound porch during restoration.

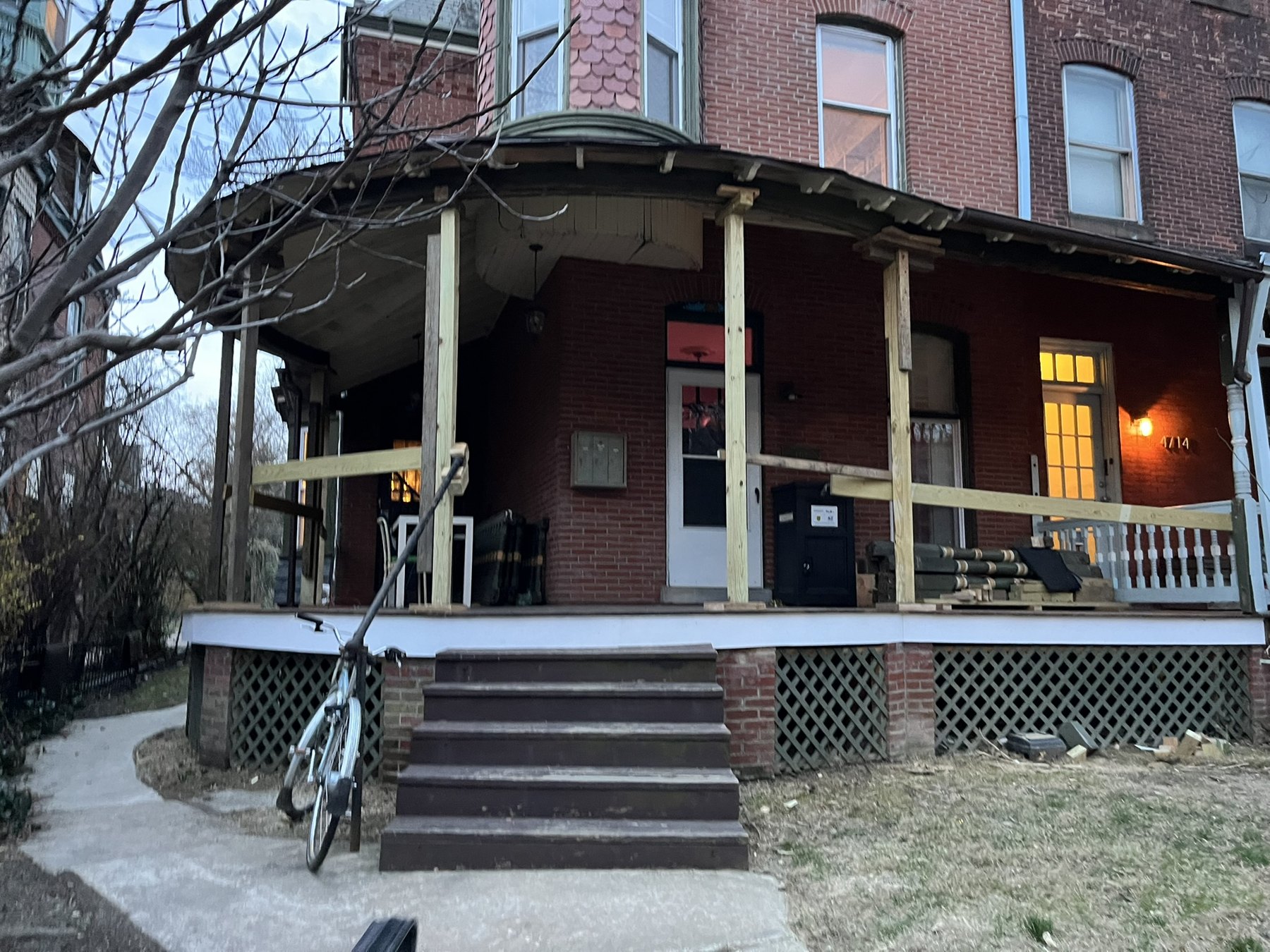

Victorian porch with temporary supports during restoration — Temporary support during the second restoration phase, with the original assemblies removed.

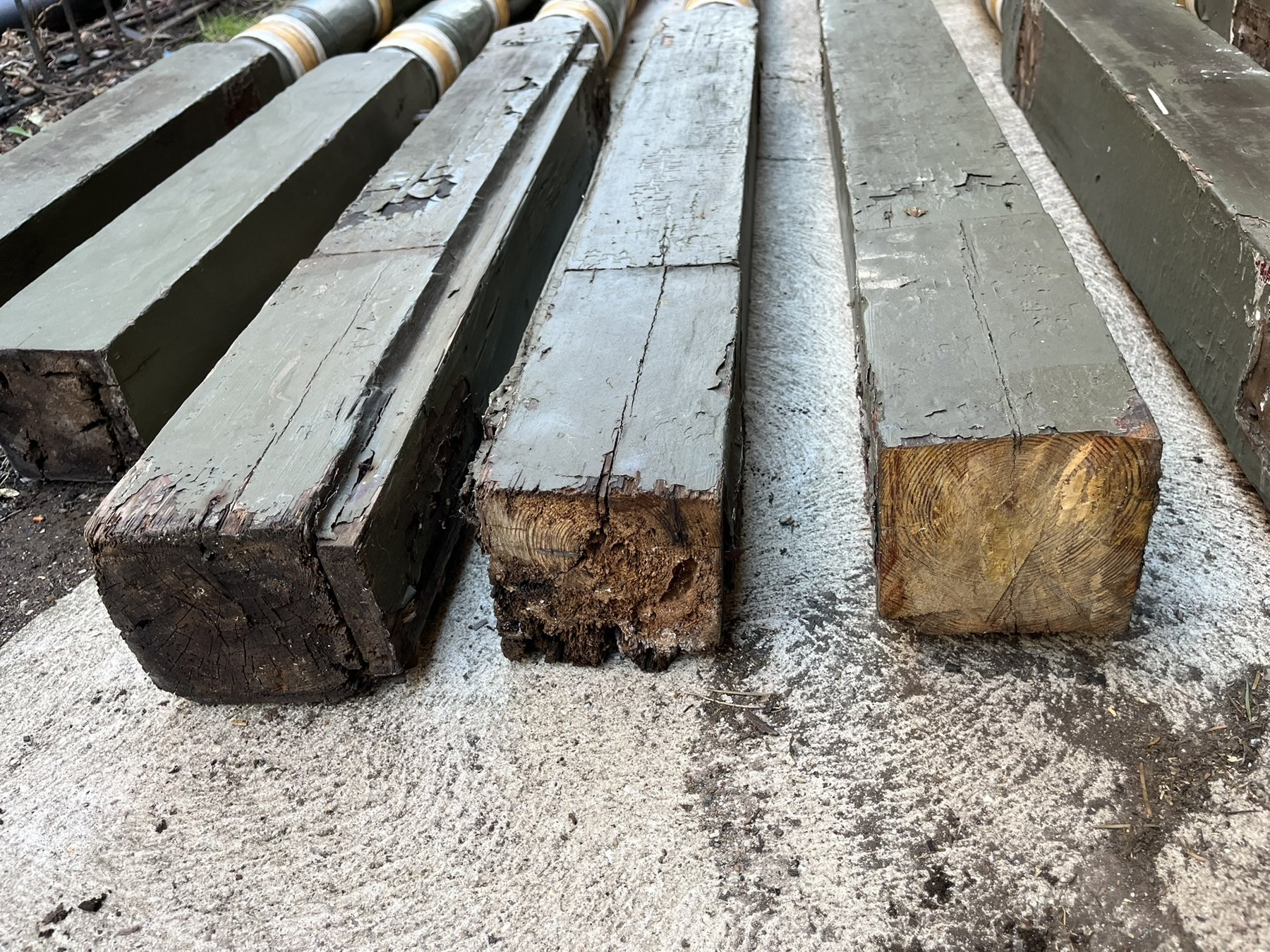

Decayed ends of retained turned porch posts — The condition of the retained post bases before repair.

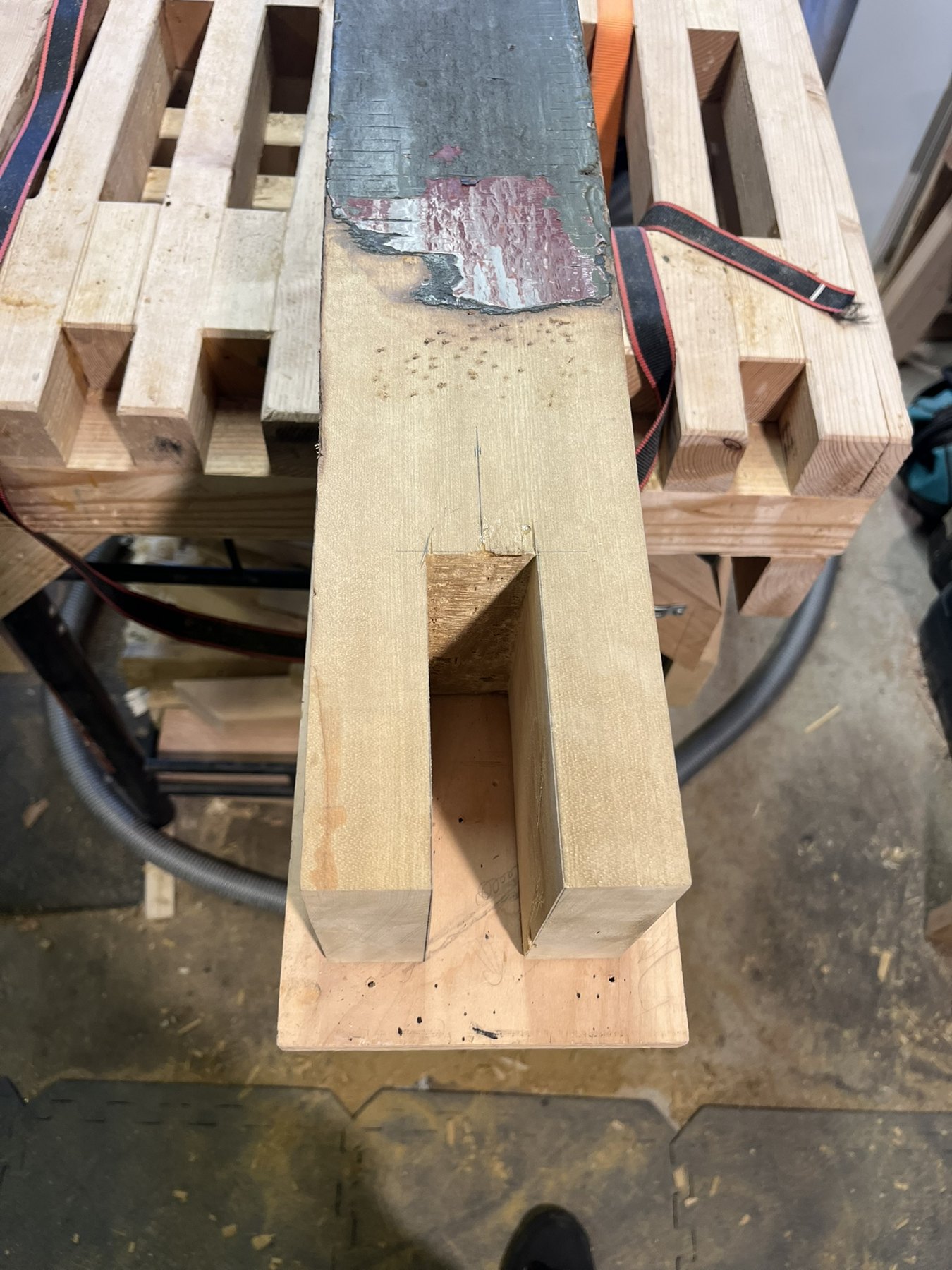

Hand-cut open bridle joint at the end of a porch post — The deep hand-cut joint prepared for a new cedar base.

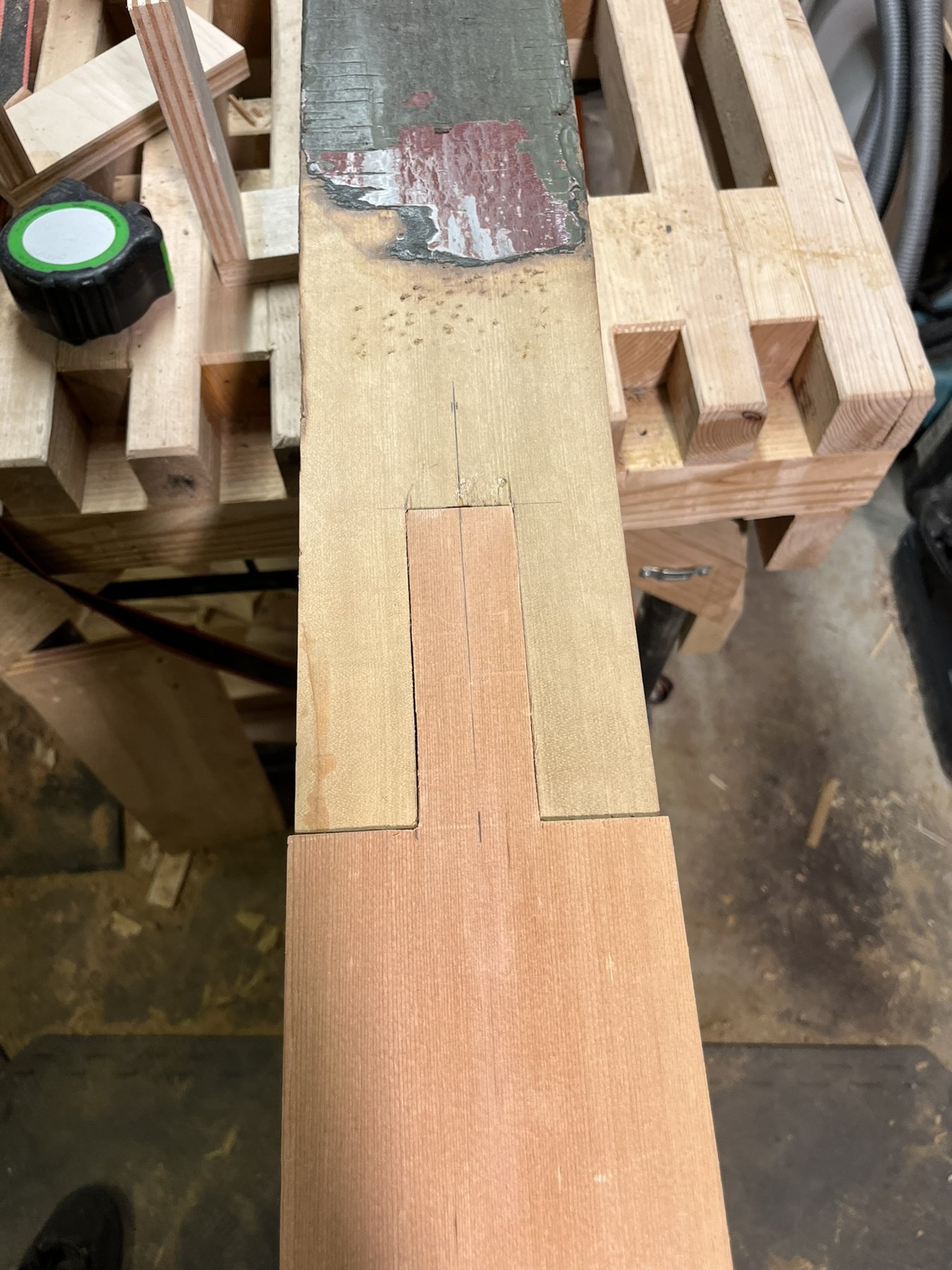

Retained turned porch posts with new cedar base repairs — Cedar repairs to retained post bases, using hand-cut joints and cedar dowels.

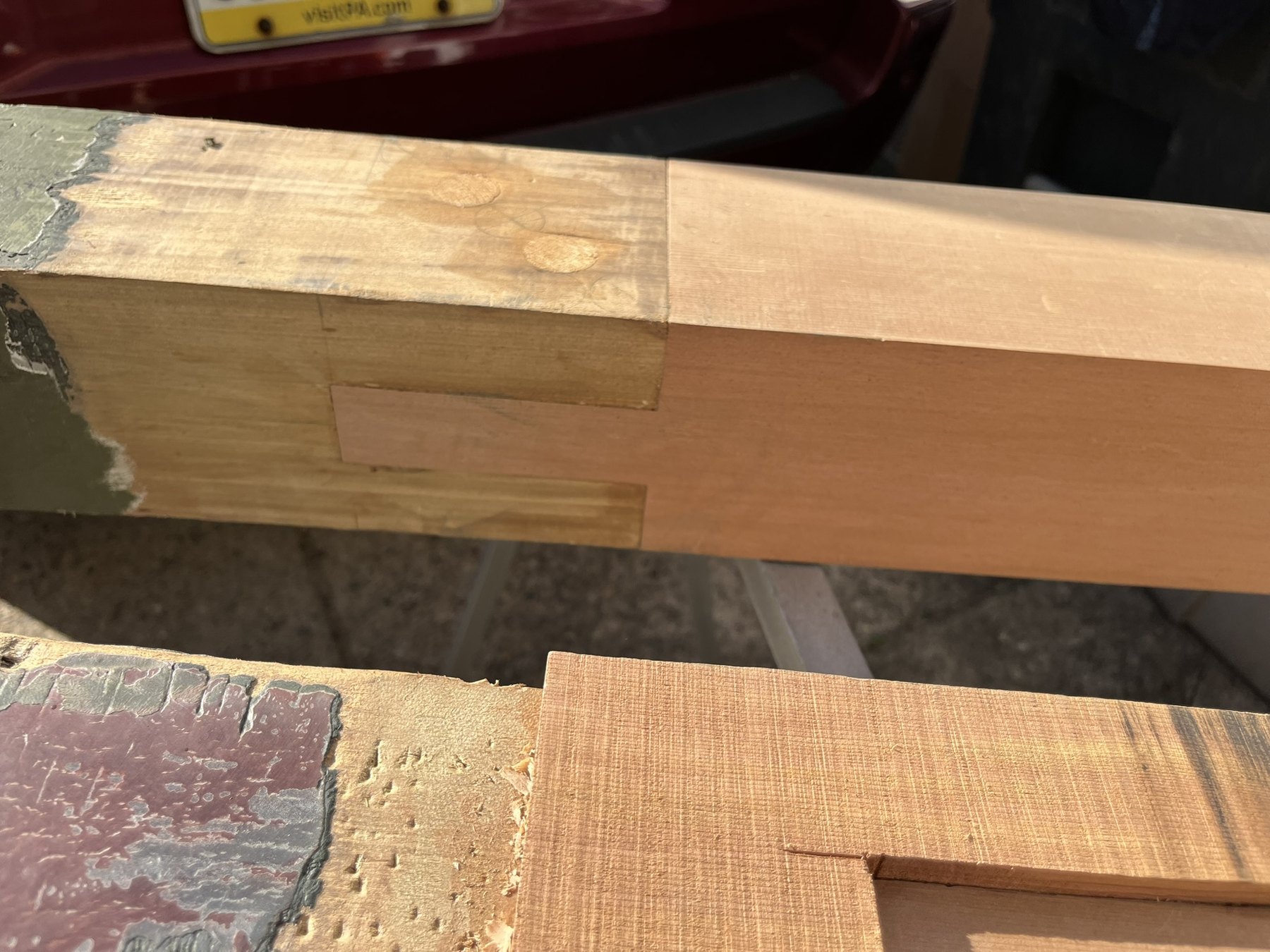

Close view of a cedar post repair with a wooden dowel — A fitted cedar repair reinforced with a cedar dowel, before priming and paint.

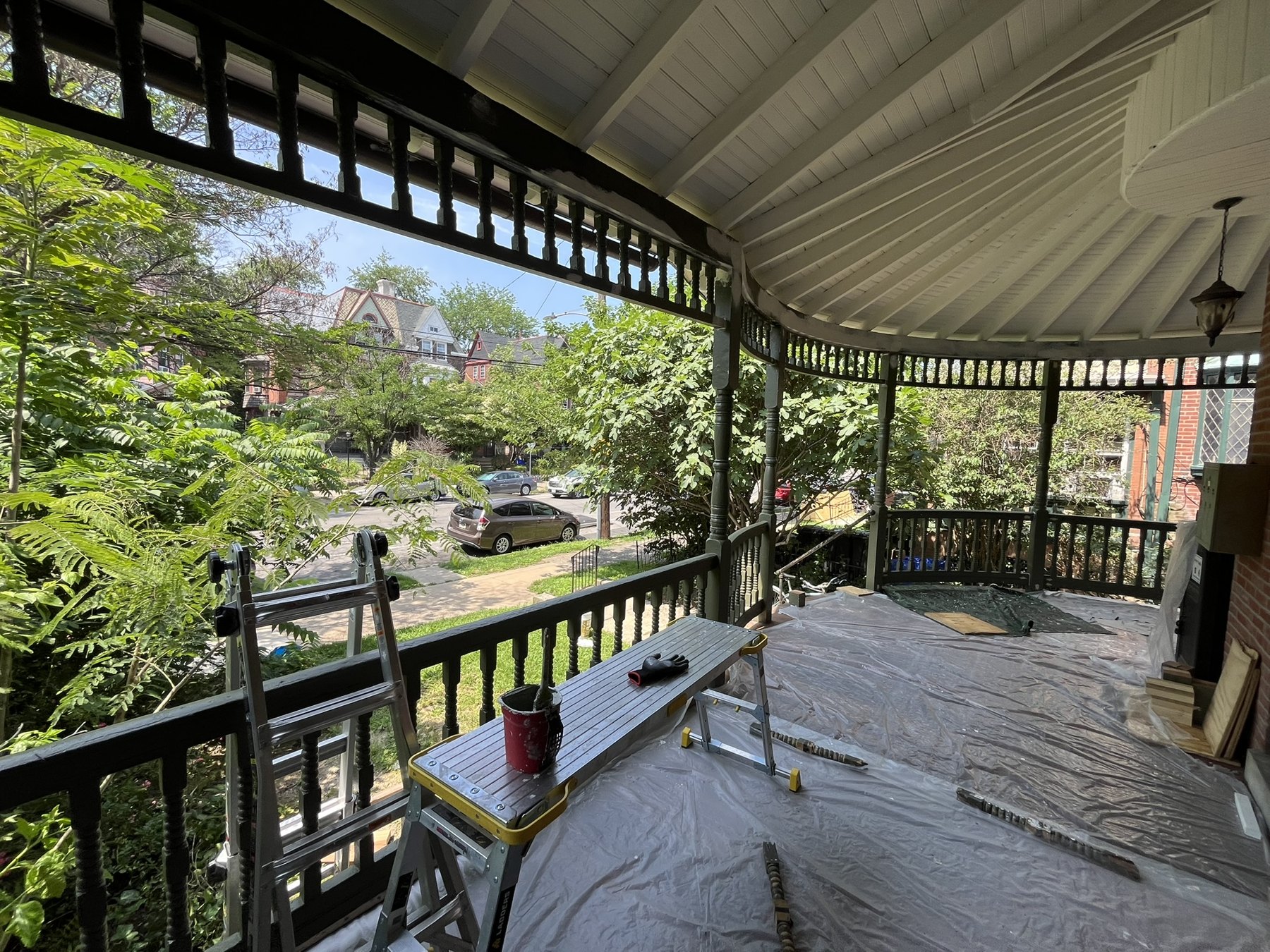

Porch during repainting with drop cloths, ladder, and painting supplies — Painting in progress: the decking protected while the ceiling and decorative woodwork were detailed.

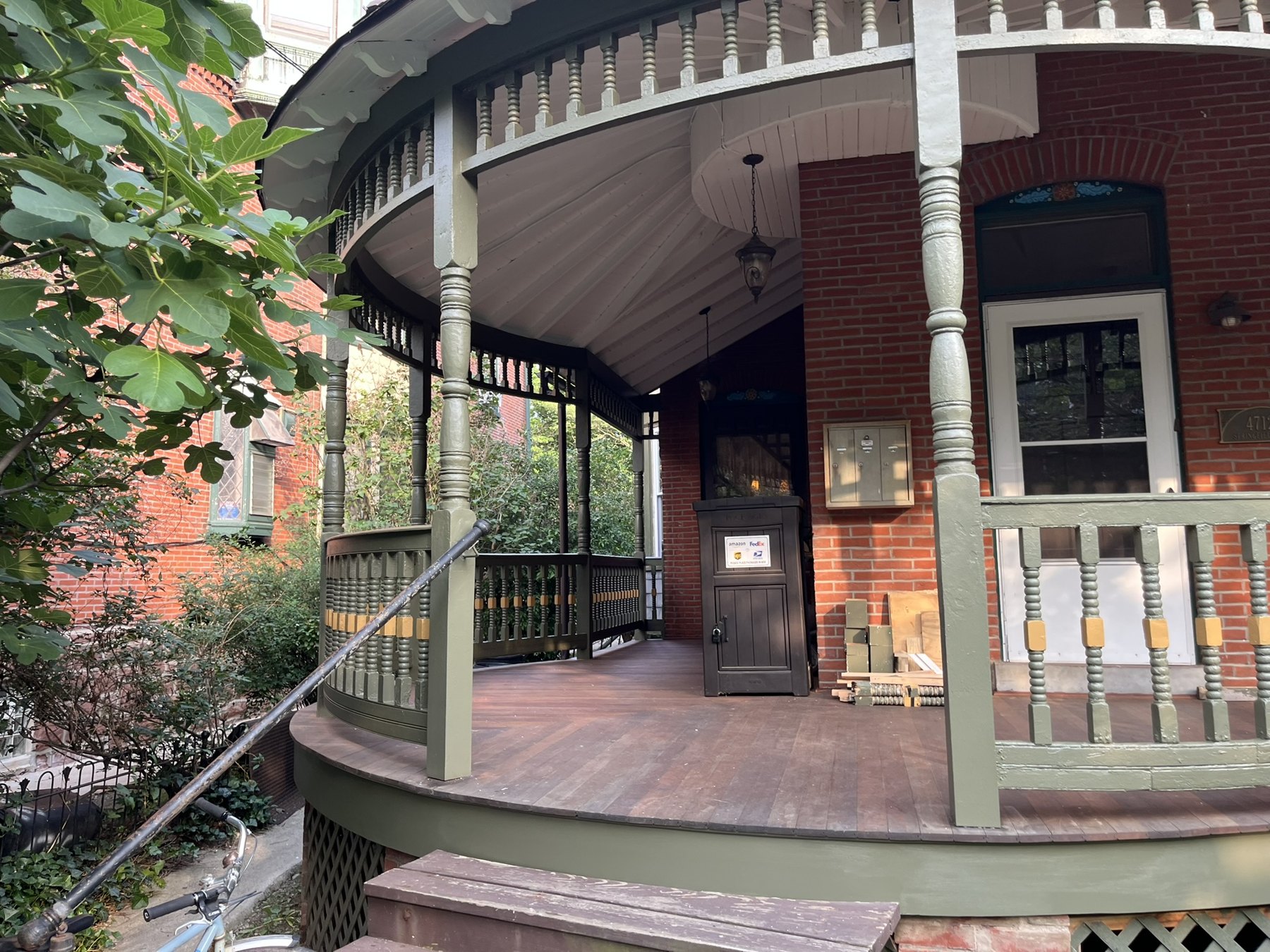

Restored curved porch entrance with turned posts, painted ornament, and wood decking — The entry and circular projection after the woodwork was reinstalled and painted.

Subcontracted restoration scope: framing, decking, masonry-pier repairs, post-base joinery, railing fabrication and paint restoration. A collaborating woodturner supplied the new cedar post and replacement turned spindles. The gallery includes completed work and construction stages.
